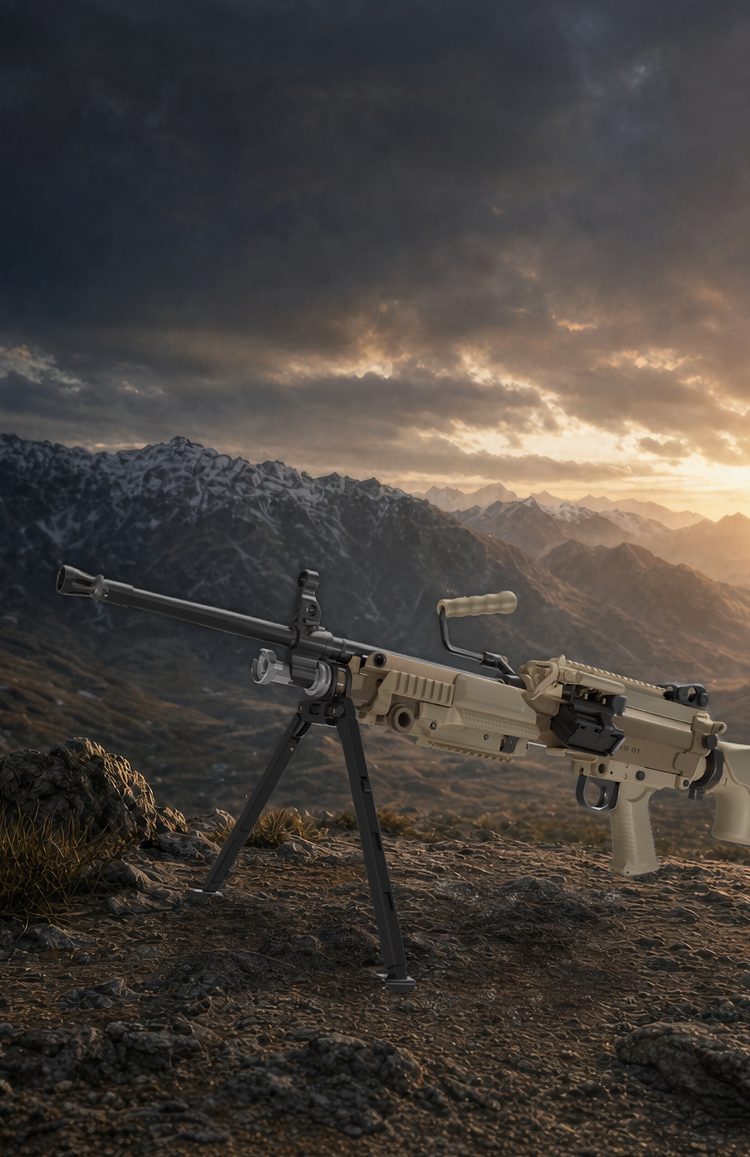

TM 01 in Flat Dark Earth on its bipod on a mountain ridge at sunset

TM Savunma 5.56×45 mm TM 01 Machine Gun Family

Next-generation machine gun · four variants

Calibre
5.56×45 mm
Weight
7.22–8 kg
Rate of fire
700–1000 rds/min
Variants
4
Request information Technical data

Overview

Description

TM 01 is a next-generation machine gun chambered in 5.56×45 mm. It is gas-piston operated with a rotating bolt and can be belt- or magazine-fed. The family comprises four variants that differ in barrel length and stock type: TM01SB, TM01LB, TM01S and TM01C.

Family

Barrel lengths
349 / 466 mm
Stock types
Adjustable · Fixed · Telescopic wire
Operation
Gas-piston operated, rotating bolt
Feed
Belt- or magazine-fed

Variants

Four variants by barrel length and stock type. Images are shown to the same scale and aligned at the trigger guard.

TM01SB863 mm TM01LB979 mm TM01S1040 mm TM01C766–914 mm

TM01SB

Short barrel · adjustable stock

Overall length
863 mm
Barrel length
349 mm
Weight
8 kg
Rate of fire
800 rds/min

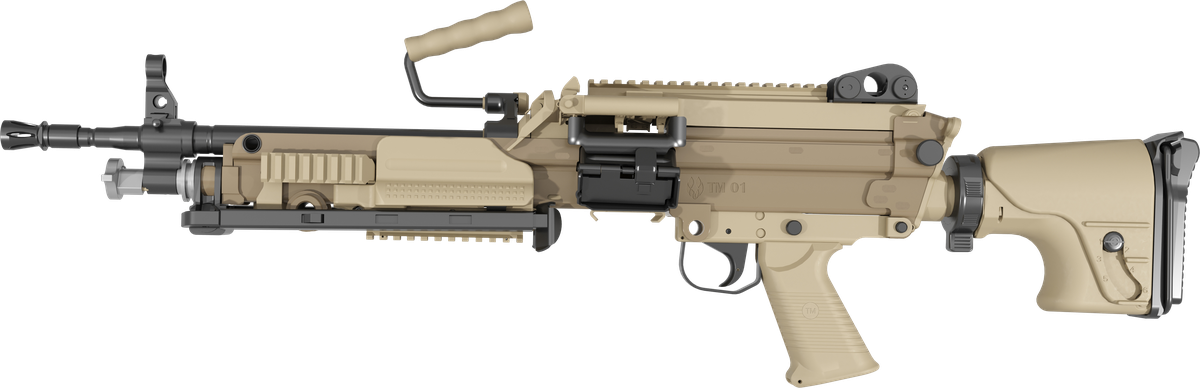

TM01SB in Flat Dark Earth with short barrel and adjustable stock; side view

863 mm

TM01LB

Long barrel · adjustable stock

Overall length
979 mm
Barrel length
466 mm
Weight
8 kg
Rate of fire
700–1000 rds/min

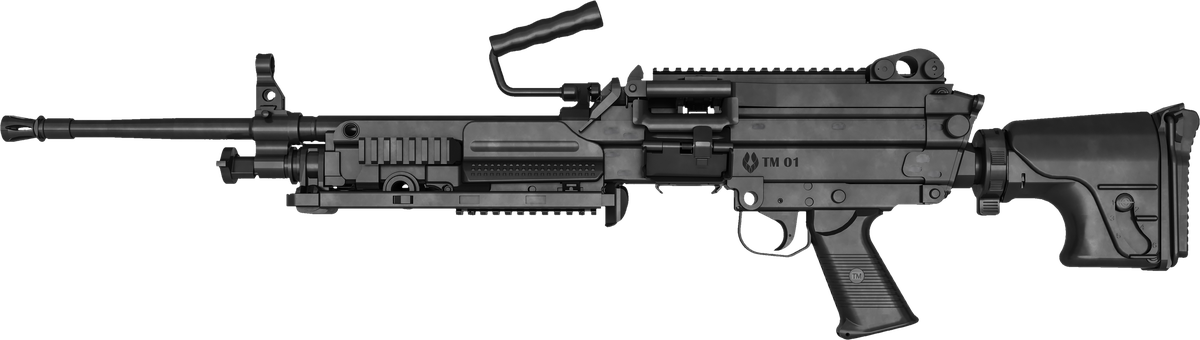

TM01LB in black with long barrel and adjustable stock; side view

979 mm

TM01S

Long barrel · fixed stock

Overall length
1040 mm
Barrel length
466 mm
Weight
7.22 kg
Rate of fire
700–1000 rds/min

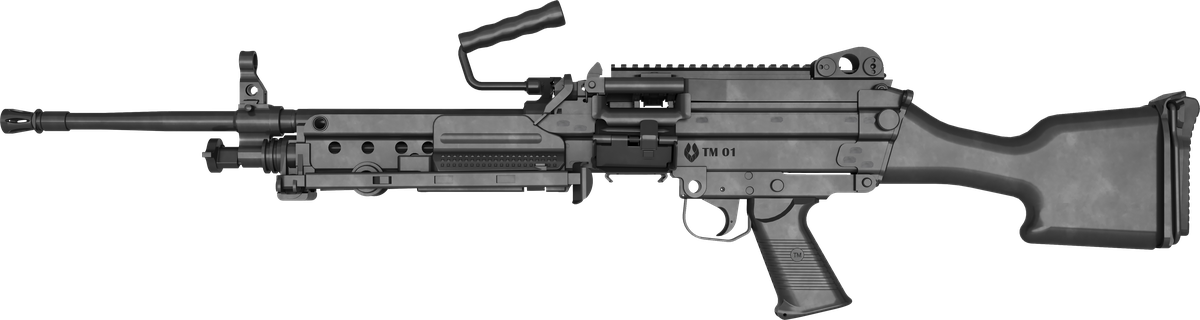

TM01S in black with long barrel and fixed stock; side view

1040 mm

TM01C

Short barrel · telescopic wire stock

Overall length
766–914 mm
Barrel length
349 mm
Weight
7.22 kg
Rate of fire
700–1000 rds/min

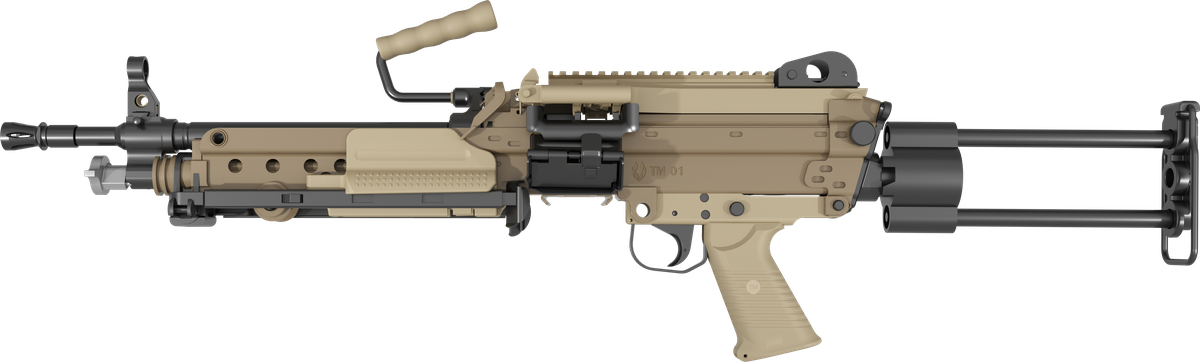

TM01C in Flat Dark Earth with short barrel and telescopic wire stock (extended); side view

766–914 mm

Scale comparison

Overall lengths of the four variants at the same scale, aligned at the muzzle. TM01C is shown with the stock extended (914 mm); the dashed line marks the collapsed position (766 mm).

  1. TM01S1040 mm
  2. TM01LB979 mm
  3. TM01C766–914 mm
  4. TM01SB863 mm

Key Features

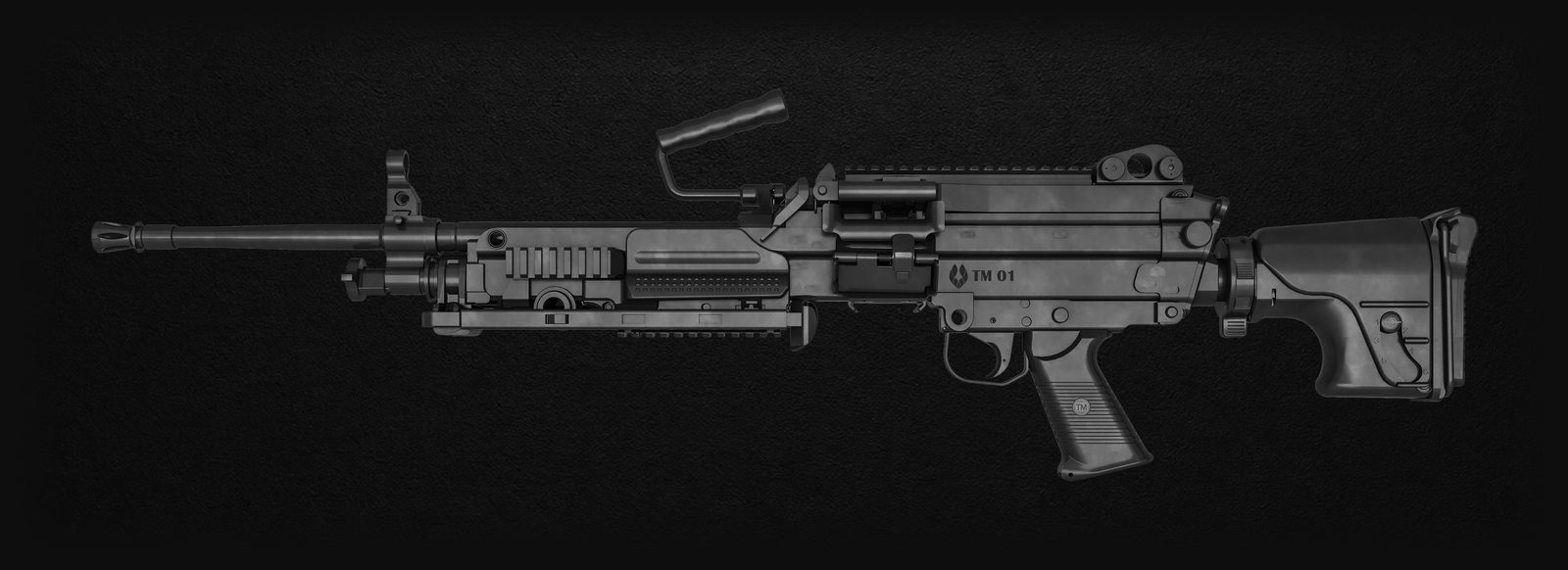

TM 01 side view with its 13 key features numbered
  1. Chrome-Lined Forged Barrel
  2. Adjustable Gas Regulator
  3. Pintle‑Mountable
  4. Quick‑Change Barrel
  5. Height‑Adjustable Bipod
  6. Optional Lower Universal Picatinny Rail
  7. Ergonomic Carrying Handle
  8. Dual Feed (Belt + Magazine)
  9. Universal Picatinny Rail
  10. Ergonomic Pistol Grip
  11. Optional Hydraulic Stock
  12. Adjustable Telescopic Stock
  13. Height‑Adjustable Cheek Rest

Features may vary by configuration.

Technical Data

Common to all variants

  • Calibre5.56×45 mm
  • OperationGas-piston operated, rotating bolt
  • FeedBelt- or magazine-fed
Table 1TM 01 variant technical data
Model Overall length Barrel length Weight Rate of fire
TM01SBShort barrel · adjustable stock 863 mm 349 mm 8 kg 800 rds/min
TM01LBLong barrel · adjustable stock 979 mm 466 mm 8 kg 700–1000 rds/min
TM01SLong barrel · fixed stock 1040 mm 466 mm 7.22 kg 700–1000 rds/min
TM01CShort barrel · telescopic wire stock 766–914 mm 349 mm 7.22 kg 700–1000 rds/min

Specifications and images are for information only and are subject to change without notice.
